Cable to Cable Horizontal Parallel Cable Tap – CC6

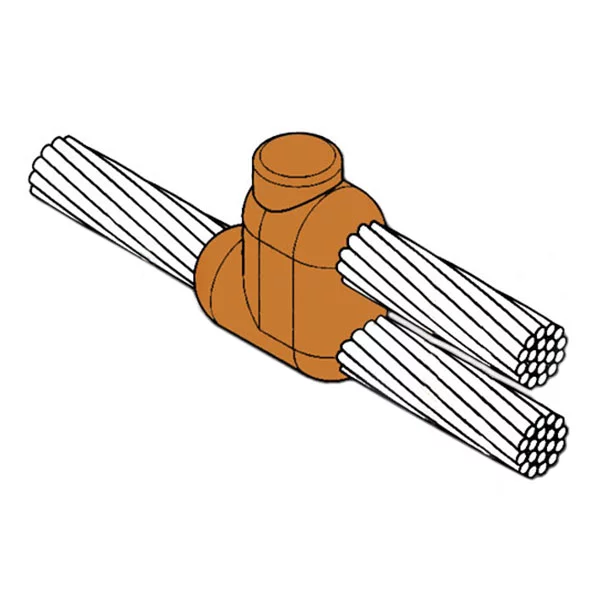

Product Information: Three Way Cable Joint is a cable to cable exothermic welded connection that requires HCD Handle Clamp. The AIWeld Exothermic Co…

Category:

Description

Product Information: Three Way Cable Joint is a cable to cable exothermic welded connection that requires HCD Handle Clamp. The AIWeld Exothermic Connection is a permanent, zero-maintenance weld solution providing up to 50 years of service life. Unlike pressure-type connections – such as bolts or crimps – AIWeld welds do not loosen or degrade with time, providing consistent electrical performance without increased resistance. The granular powder of the AIWeld metal includes copper oxide, aluminium, and flux and is available in standard sizes. AIWeld Mould

Additional information

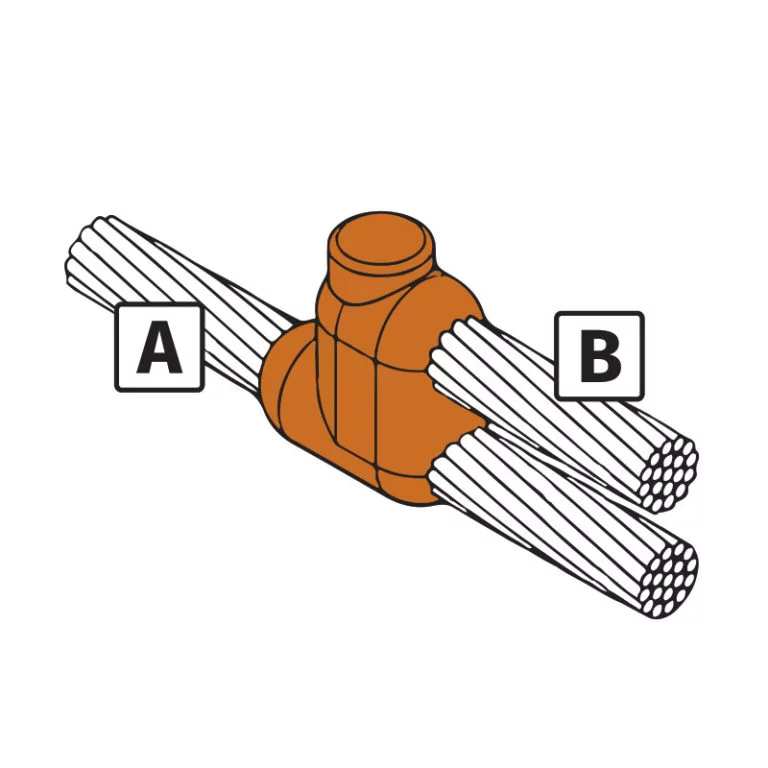

Size A

10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300

Size B

10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300

Weld Metal

#045, #065, #090, #115, #150, #200, #250, 2x#150, 2x#200, 2x#250

Handle Clamp

HCC, HCD
